LMV-Net

📌 Overview

LMV-Net (Longitudinal Multi-View Network) is a deep learning model for breast cancer risk prediction from mammography. It jointly models multi-view imaging (CC, MLO) and longitudinal information (current and prior exams) to produce risk estimates over multiple future time horizons.

The model integrates temporal alignment, cross-view feature fusion, and multi-head risk prediction within a unified framework.

🧠 Key Idea

LMV-Net is built around three core ideas:

  • Longitudinal alignment: Previous mammography feature maps are spatially aligned to current mammogrpahy feature maps using a registration network (MammoRegNet) to enable meaningful temporal comparison
  • Cross-view fusion: CC and MLO views are iteratively fused using self-attention and cross-attention mechanism
  • Multi-level prediction: Risk is predicted at both view-specific and fused multi-view levels

This design allows the model to capture both temporal changes and cross-view consistency.

🏗️ Architecture

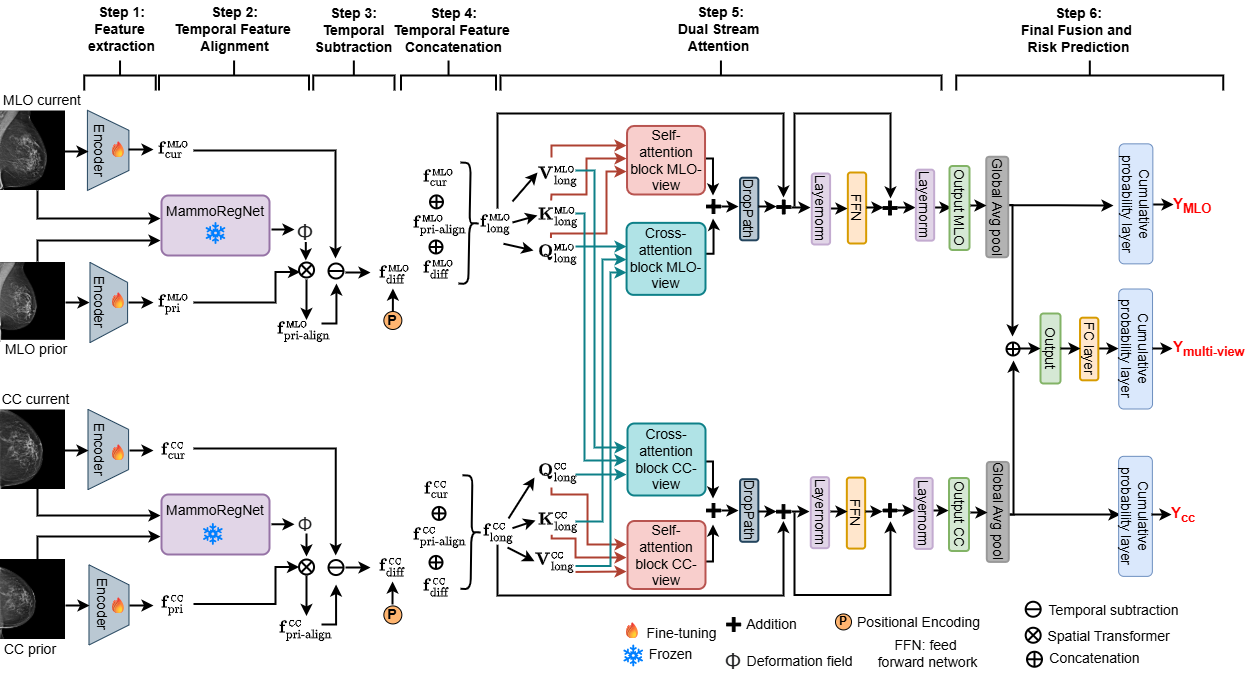

LMV-Net Architecture

The model consists of three main components:

1. Longitudinal Feature Processing

  • Uses a shared encoder to extract feature maps from each view across both time points
  • Applies a registration network (e.g., MammoRegNet) to align prior feature maps with current feature maps
  • Computes difference features by subtracting aligned prior features from current features
  • Concatenates current, aligned prior, and difference features to form a unified longitudinal feature representation for each view prior, and difference feature to obtain a longitudinal feature vector for each view

2. Multi-View Dual Stream-Attention

  • Performs self-attention and corss-attention within each view
  • Iteratively exchanges information between CC and MLO features
  • Enhances view consistency and complementary feature learning

3. Multi-View Fusion and Risk Prediction

  • Global average pooling applied to each view
  • Feature vectors concatenated and passed through a linear layer
  • Produces a fused multi-view representation
  • Shared cumulative probability layer
  • Outputs:
    • Multi-view risk prediction
    • CC-only risk prediction
    • MLO-only risk prediction

🔄 Input / Output

Input

The model expects a batch dictionary with:

  • current_image_cc: Current CC view [B, 1, H, W]
  • previous_image_cc: Prior CC view [B, 1, H, W]
  • current_image_mlo: Current MLO view [B, 1, H, W]
  • previous_image_mlo: Prior MLO view [B, 1, H, W]
  • time_gap: Time between exams [B, 1]
  • target: Risk labels [B, num_years]
  • y_mask: Valid label mask [B, num_years]

Output

The forward method returns a dictionary containing:

  • risk_multi: Multi-view fused risk logits [B, num_years]
  • risk_cc: CC-only risk logits [B, num_years]
  • risk_mlo: MLO-only risk logits [B, num_years]

These outputs are consumed by two helper methods:

  • get_risk_heads(outputs, batch)
    Uses the outputs from forward to construct (logits, target, mask) tuples for each prediction head:
    • multi: Uses risk_multi with target and y_mask
    • cc: Uses risk_cc with target and y_mask
    • mlo: Uses risk_mlo with target and y_mask

This enables multi-head supervision, encouraging both view-specific learning and improved fused predictions.

  • get_primary_risk_head(outputs)
    Uses the outputs from forward to return the final prediction for evaluation, defined as: sigmoid(risk_multi)

This represents the model’s primary risk estimate, based on fused multi-view information.

🧩 Integration in This Framework

LMV-Net is implemented as a subclass of BaseRiskModel and:

  • Uses the shared data interface
  • Supports longitudinal multi-view inputs
  • Produces multiple risk heads for multi-task training
  • Uses a unified evaluation pipeline via the primary risk head

⚙️ Key Components

  • LongitudinalFeatureProcessor: Handles temporal feature alignment using registration
  • Multi-View Dual Stream-Attention Block: Performs cross-view feature fusion using self-attention and cross-attention
  • Continuous Positional Encoding: Injects time-gap information into difference features
  • CumulativeProbabilityLayer: Outputs risk over time horizons
  • Freezing Mechanism: : Allows pretrained encoder to be frozen during training

📉 Risk Prediction

  • Risk is modeled as cumulative probability over time
  • Multiple heads allow:
    • View-specific supervision
    • Improved training stability
