VMRA-MaR

📌 Overview

VMRAMaR is a longitudinal breast cancer risk prediction model that combines:

  • Multi-view mammography encoding
  • Temporal sequence modeling using VMRNN
  • Optional asymmetry-aware risk modeling

Image features are extracted independently for each mammography view and aggregated across views using mean pooling. Sequential visit representations are processed using a VMRNN to capture temporal evolution across screening history.

An optional asymmetry branch compares left and right breast feature maps using a Spatial Asymmetry Detector (SAD), followed by longitudinal aggregation using a Longitudinal Asymmetry Tracker (LAT).

Temporal and asymmetry features are fused and passed to a cumulative probability prediction layer for multi-year breast cancer risk estimation.

🧠 Key Idea

VMRAMaR is built on three central principles:

  • Temporal modeling: Sequential mammography visits are modeled using a VMRNN, capturing disease progression over time
  • Cross-view aggregation: Multiple views (e.g., CC and MLO) are fused using multi-head self-attention
  • Asymmetry-aware learning (optional): Differences between left and right breast representations are explicitly modeled using spatial and longitudinal asymmetry modules

This enables the model to capture temporal trends, view consistency, and biological asymmetry signals.

🏗️ Architecture

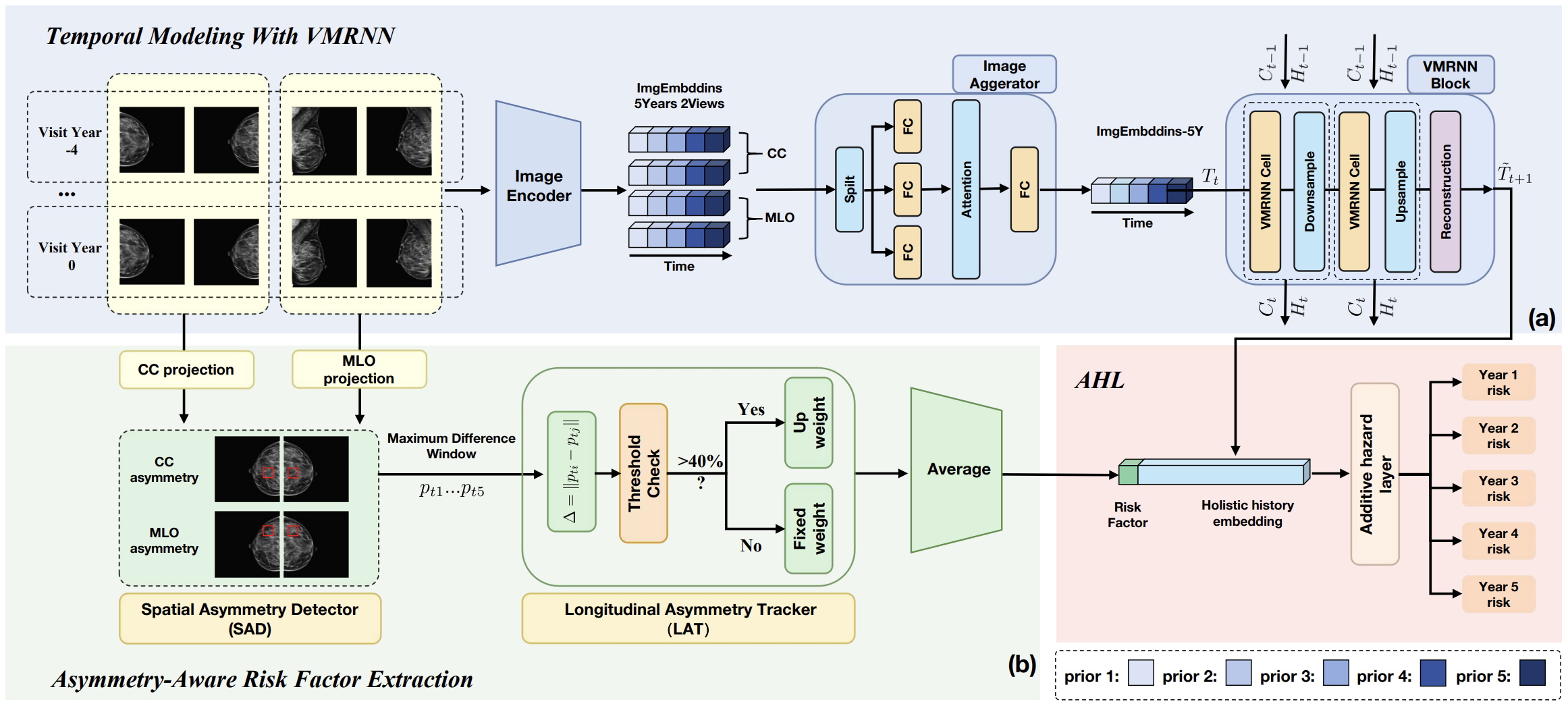

VMRA-MaR Architecture

The model consists of five main components:

1. Image Encoder

  • Uses a pretrained CNN encoder (e.g., custom ResNet or snapshot model)
  • Pooling and classification heads are replaced with identity layers to extract feature maps
  • Optionally frozen during training for stability

Output: - Feature maps per image: [B, T, V, C, H, W]

2. View Aggregation (Multi-View Fusion)

  • Spatially pooled image features are aggregated across mammography views
  • Features are averaged across views (e.g., CC and MLO)
  • Resulting visit-level representations are projected into the VMRNN embedding space

Output: - Visit-level embeddings: [B, T, D]

3. Temporal Modeling (VMRNN Block)

  • Sequential visit embeddings processed using VMRNN
  • Captures temporal dependencies across screening history
  • Mean pooling over time followed by projection

Output: - Temporal feature vector: [B, D]

4. Asymmetry Branch (Optional)

Activated when use_asymmetry = True.

a. Spatial Asymmetry Detector (SAD)

  • Compares left vs right breast feature maps
  • Produces:
  • Asymmetry heatmaps [B, T, H_lat, W_lat]
  • Asymmetry coordinates

b. Feature Projection

  • Heatmaps flattened and projected to 512-D space

c. Longitudinal Asymmetry Tracker (LAT)

  • Aggregates asymmetry features across time
  • Incorporates spatial coordinates and temporal evolution

Output: - Longitudinal asymmetry risk factor: [B, 1]

5. Fusion & Risk Prediction

  • Concatenates:
  • Temporal features
  • (Optional) asymmetry features
  • Passed into Cumulative Probability Layer (AHL)

Output: - Risk logits: [B, max_followup]

🔄 Input / Output

Input

The model expects a batch dictionary with:

  • images: Mammography tensor
    Shape: [B, T, V, C, H, W]
  • B: Batch size
  • T: Number of timepoints (visits)
  • V: Number of views (e.g., CC, MLO)

  • C, H, W: Image channels and dimensions

  • target: Risk labels [B, num_years]

  • y_mask: Valid label mask [B, num_years]

Output

The forward method returns:

  • logit: Risk logits [B, max_followup]

Helper Methods

get_risk_heads(outputs, batch)

Returns: ("logit_output", (logits, target, mask))

Used for training with survival loss.

get_primary_risk_head(outputs)

Returns: sigmoid(logit)

This is the final risk prediction used for evaluation.

🧩 Integration in Framework

VMRAMaR extends BaseRiskModel and:

  • Uses a shared batch interface for longitudinal multi-view data
  • Supports optional asymmetry modeling
  • Produces a single primary risk head
  • Integrates seamlessly with survival loss pipelines

⚙️ Key Components

  • Image Encoder: Pretrained CNN backbone (optionally frozen)
  • Multihead Attention: Cross-view feature fusion
  • VMRNN: Temporal sequence modeling
  • SpatialAsymmetryDetector (SAD): Extracts asymmetry heatmaps
  • LongitudinalAsymmetryTracker (LAT): Tracks asymmetry over time
  • CumulativeProbabilityLayer: Outputs time-dependent risk

📉 Risk Prediction

  • Risk is modeled as a cumulative probability distribution over future time horizons
  • The model outputs logits which are transformed via sigmoid for probability interpretation
