Mirai

📌 Overview

Mirai is a longitudinal breast cancer risk prediction model that combines a deep image encoder with a transformer-based temporal model to estimate future cancer risk from a sequence of mammograms.

The model processes all screening images from a patient jointly and learns a patient wise breast cancer risk directly from image-derived representations.

🧠 Key Idea

Mirai is built around three core ideas:

  • Learned image representations: A convolutional encoder extracts compact feature vectors from each mammogram
  • Sequence modeling with transformers: A transformer processes the sequence of image features to capture view and breast dependencies
  • End-to-end risk prediction: The model outputs risk scores directly from feature sequences

🏗️ Architecture

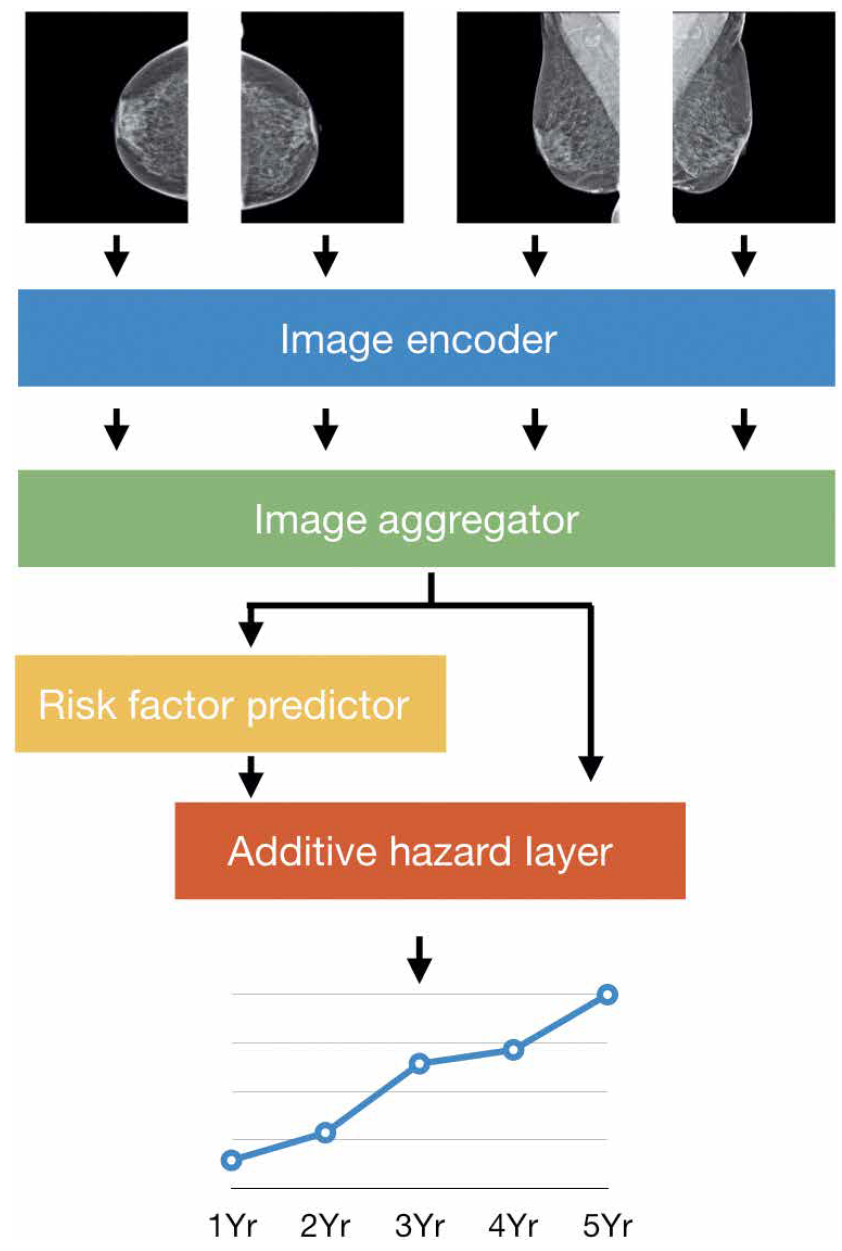

Mirai Architecture

The model consists of two main stages:

1. Image Encoding

  • Uses a ResNet-based encoder (custom_resnet)
  • Processes each image independently
  • Input shape: (B, C, N, H, W) → reshaped to (B×N, C, H, W)
  • Outputs a feature vector per image

Key details: - Encoder can be initialized from a pretrained snapshot
- Encoder can be frozen during training for efficiency and stability

2. Transformer

  • Takes per-image feature vectors as a sequence (B, N, D)
  • Models dependencies across views and breasts
  • Outputs:
  • Risk logits
  • Transformer hidden representations

Key details: - Can be initialized from a pretrained encoder snapshot
- Can be initialized from a pretrained transformer snapshot
- Learns interactions between views and breasts

🔄 Input / Output

Input

The model expects a batch dictionary with:

  • images: Mammogram sequence [B, C, N, H, W]
  • B: Batch size
  • C: Channels
  • N: Number of images (should be 4, 2 images for each breast)
  • target: Risk labels [B, num_years]
  • y_mask: Valid label mask [B, num_years]

Output

The forward method returns:

  • logit: Risk prediction logits [B, num_years]
  • transformer_hidden: Final transformer representations
  • activ_dict: Optional intermediate activations

Helper Methods

get_risk_heads(outputs, batch)

Returns: ("logit_output", (logit, target, y_mask))

Used for training with survival or multi-horizon loss.

get_primary_risk_head(outputs)

Returns: sigmoid(logit)

This is the final risk prediction used for evaluation.

🧩 Integration in This Framework

Mirai is implemented as a subclass of BaseRiskModel and:

  • Uses the shared batch-based data interface
  • Supports multi-timepoint (longitudinal) inputs
  • Integrates pretrained components (encoder + transformer)
  • Provides standardized risk head interfaces for training and evaluation

⚙️ Key Components

  • Image Encoder: : Extracts feature vectors from mammograms
  • Transformer Model: : Learn dependencies across rbeasts and views

  • Snapshot Loading (load_model):: Enables reuse of pretrained encoder and transformer weights

  • Freezing Mechanism:
    Allows encoder weights to remain fixed during training

  • Factory System (get_model_by_name):
    Dynamically constructs encoder and transformer modules

📉 Risk Prediction

  • Risk is modeled as multi-year probability logits

  • The model outputs a single prediction head:

  • logit_output: Uses:

    • logit (predictions)
    • target (labels)
    • y_mask (validity mask)

  • Final prediction for evaluation is computed as:

```python sigmoid(logit)
